Needing more than the on-the-shoulder radio mic, I interviewed users and then developed form studies for fit and functionality. Once I found the right shape, I did a quick napkin sketch before moving to CAD over the engineering package. The end product became an integrated piece of equipment that was sold with every radio from that point forward.

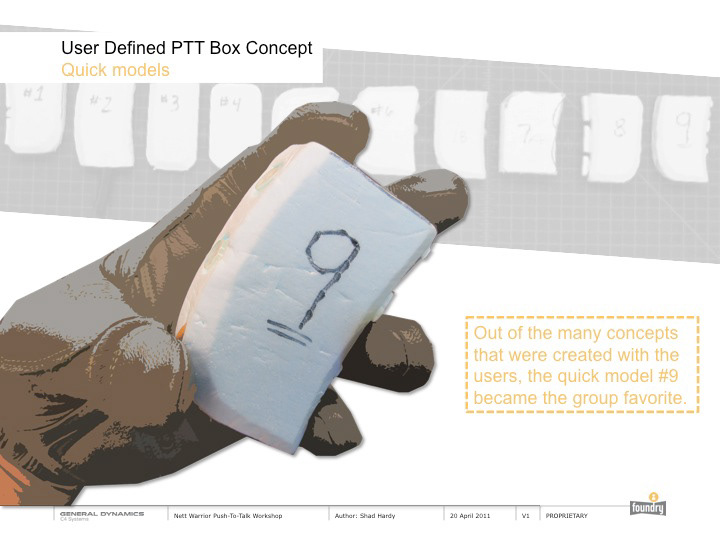

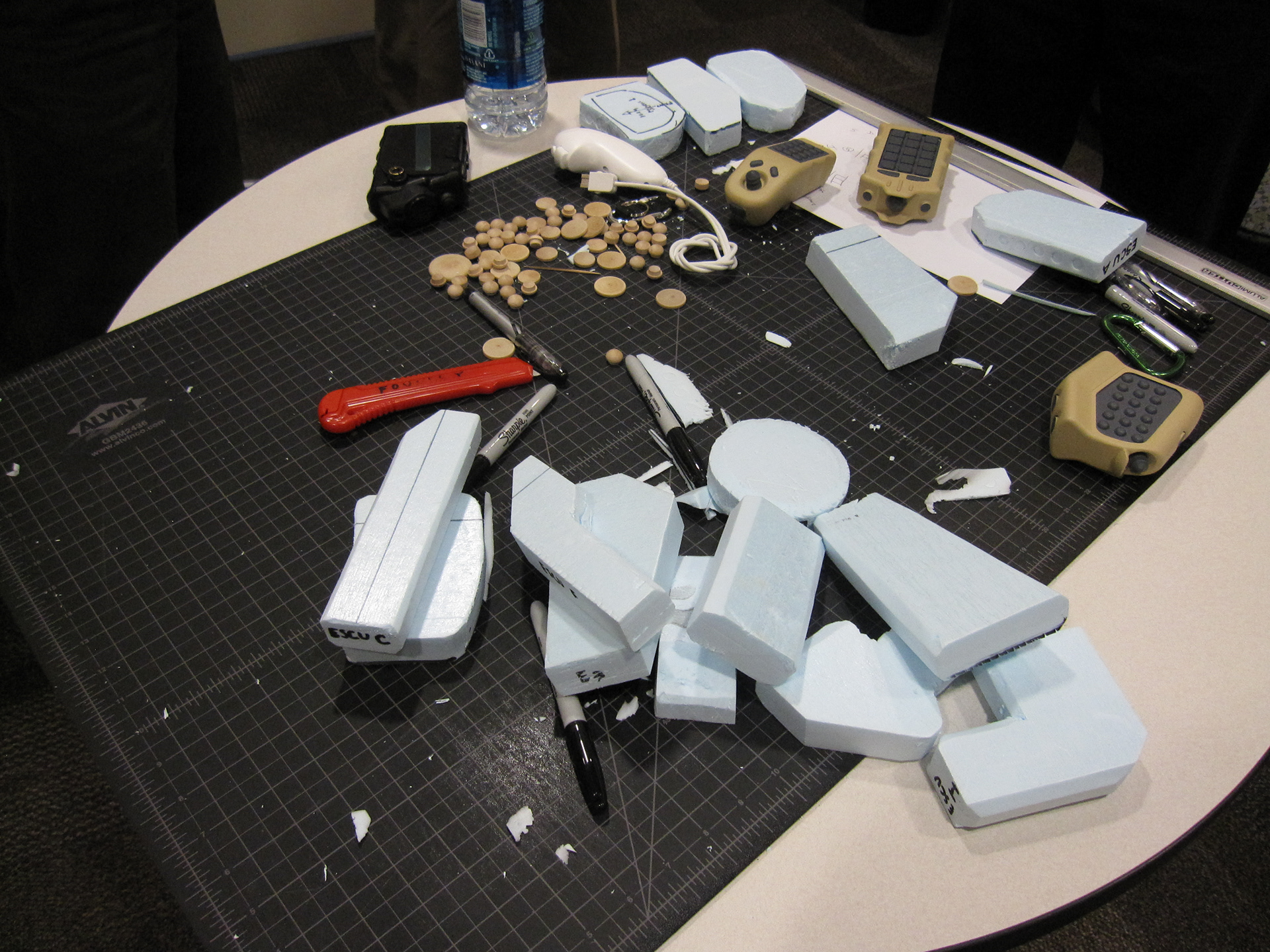

Quick model ideation exercise
Form down select

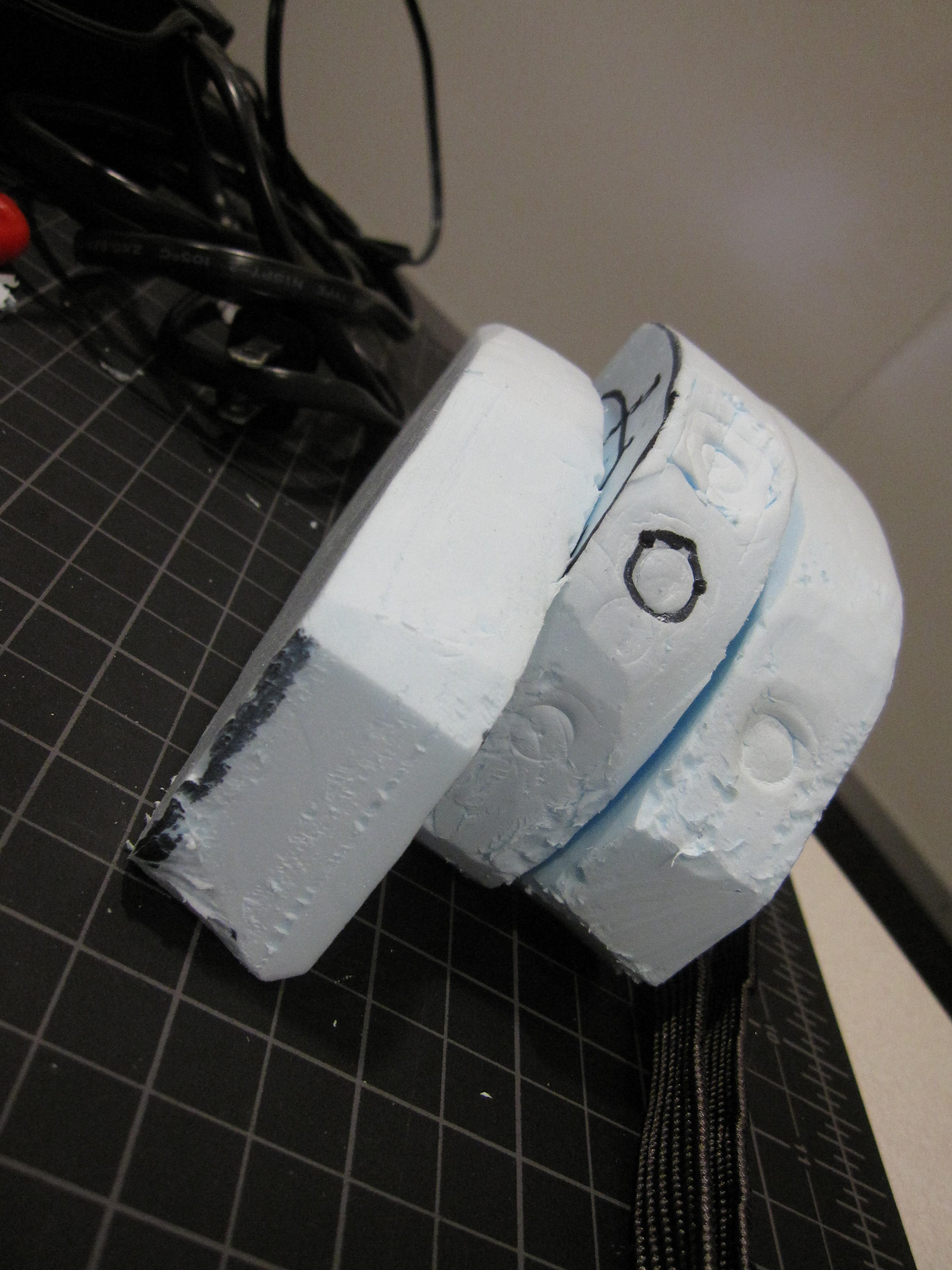

Top 3 volumes from study

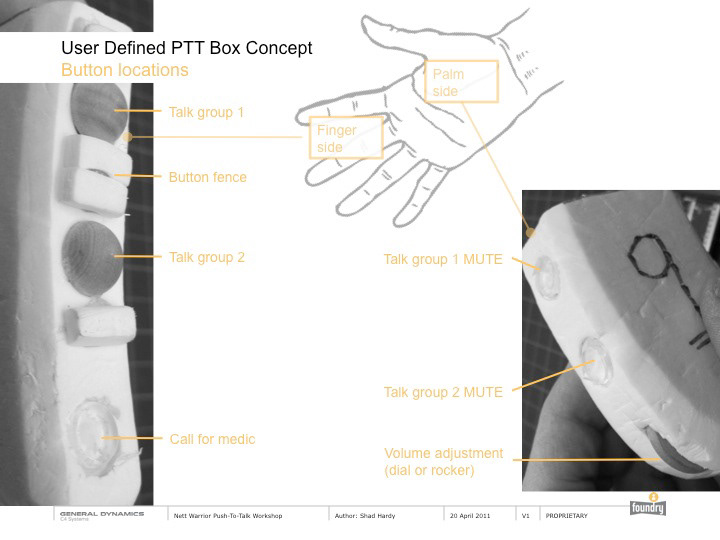

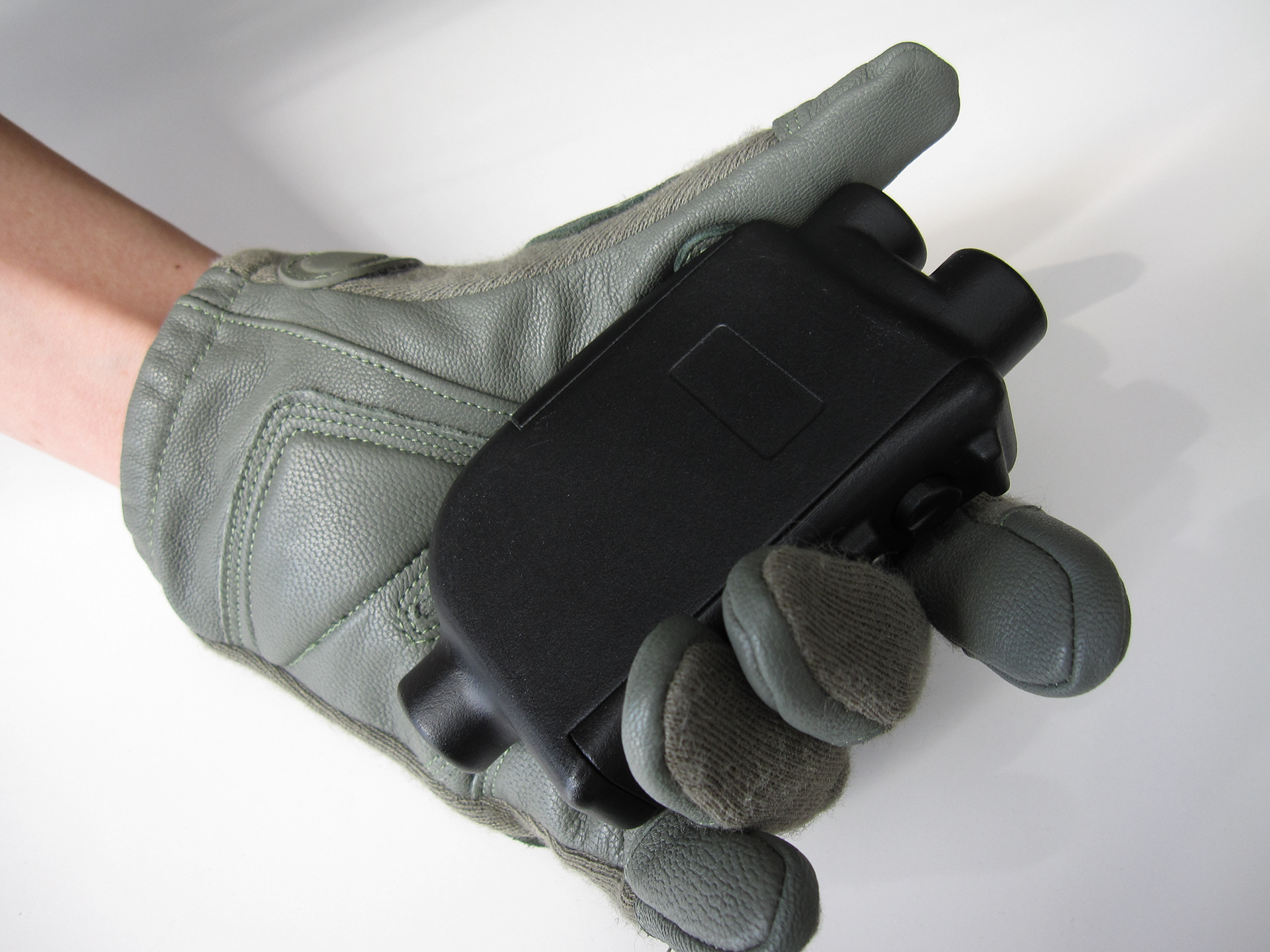

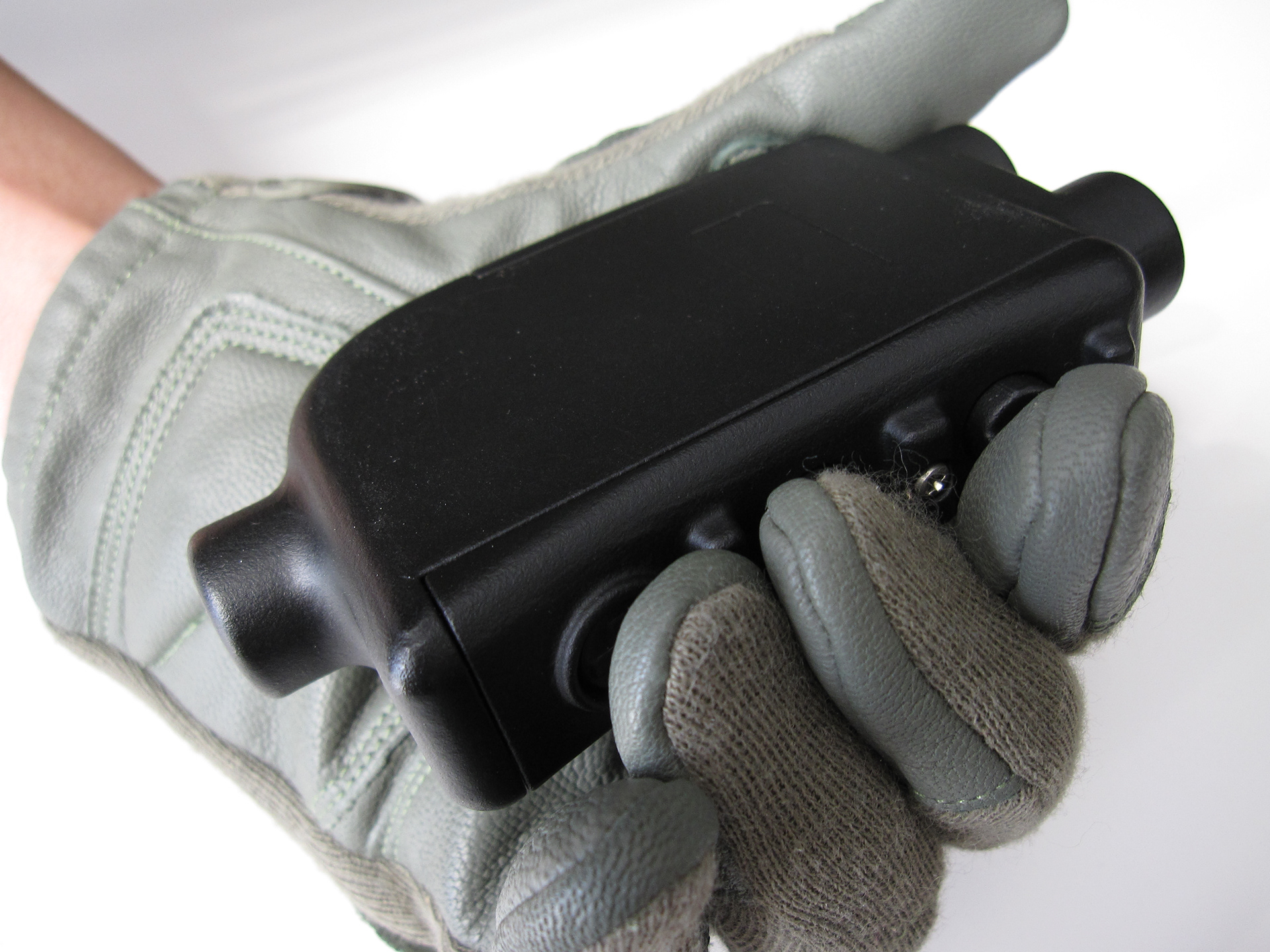

Human factors studies
Human factors studies

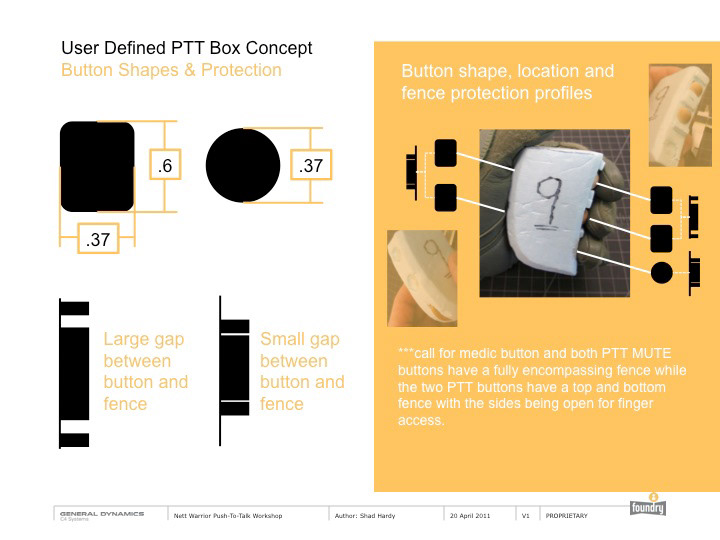

Functionality study

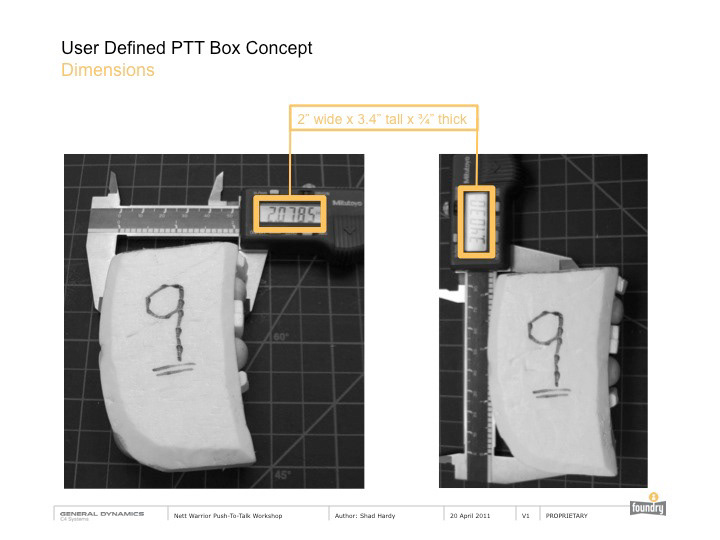

Model development

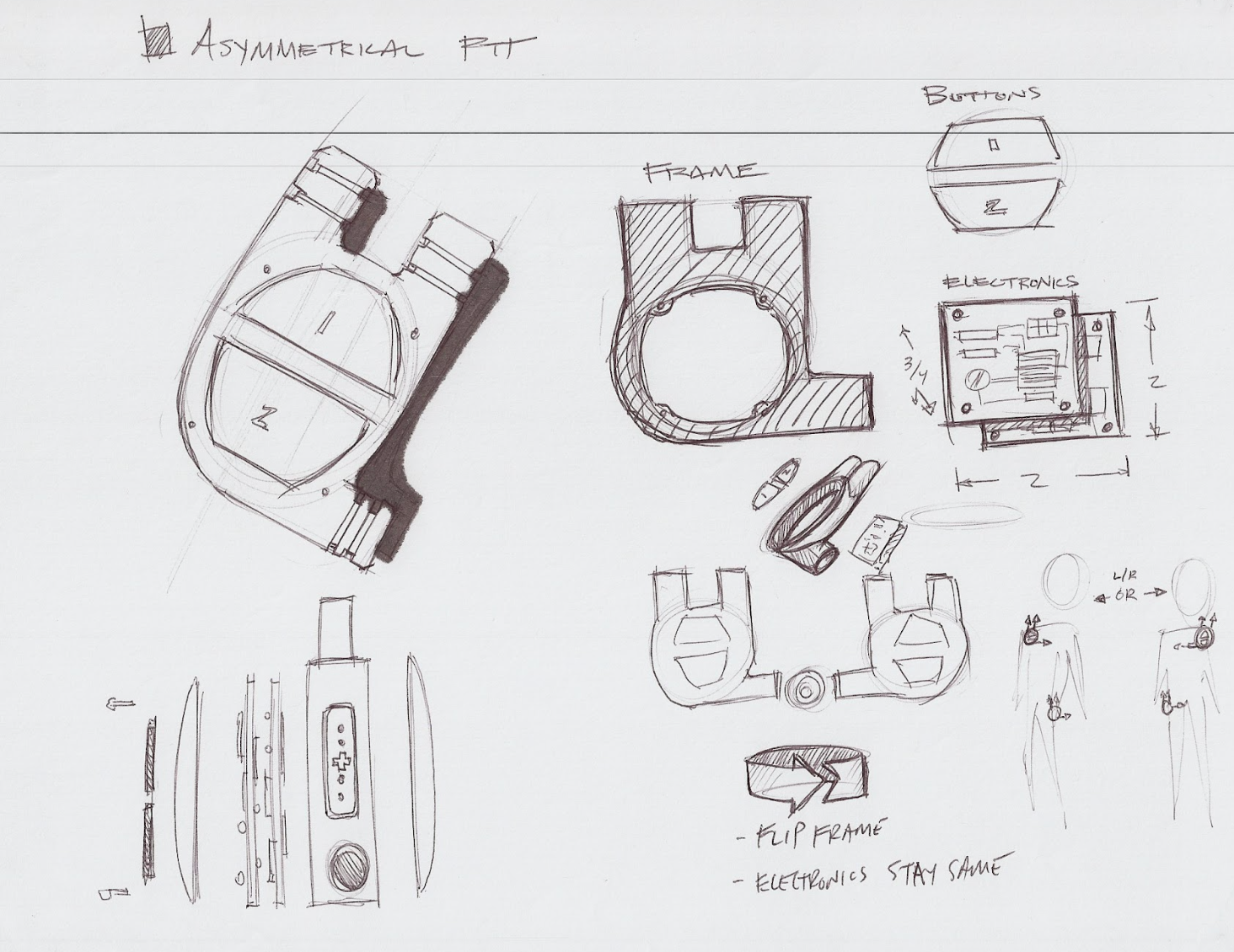

Quick sketch leading to final product

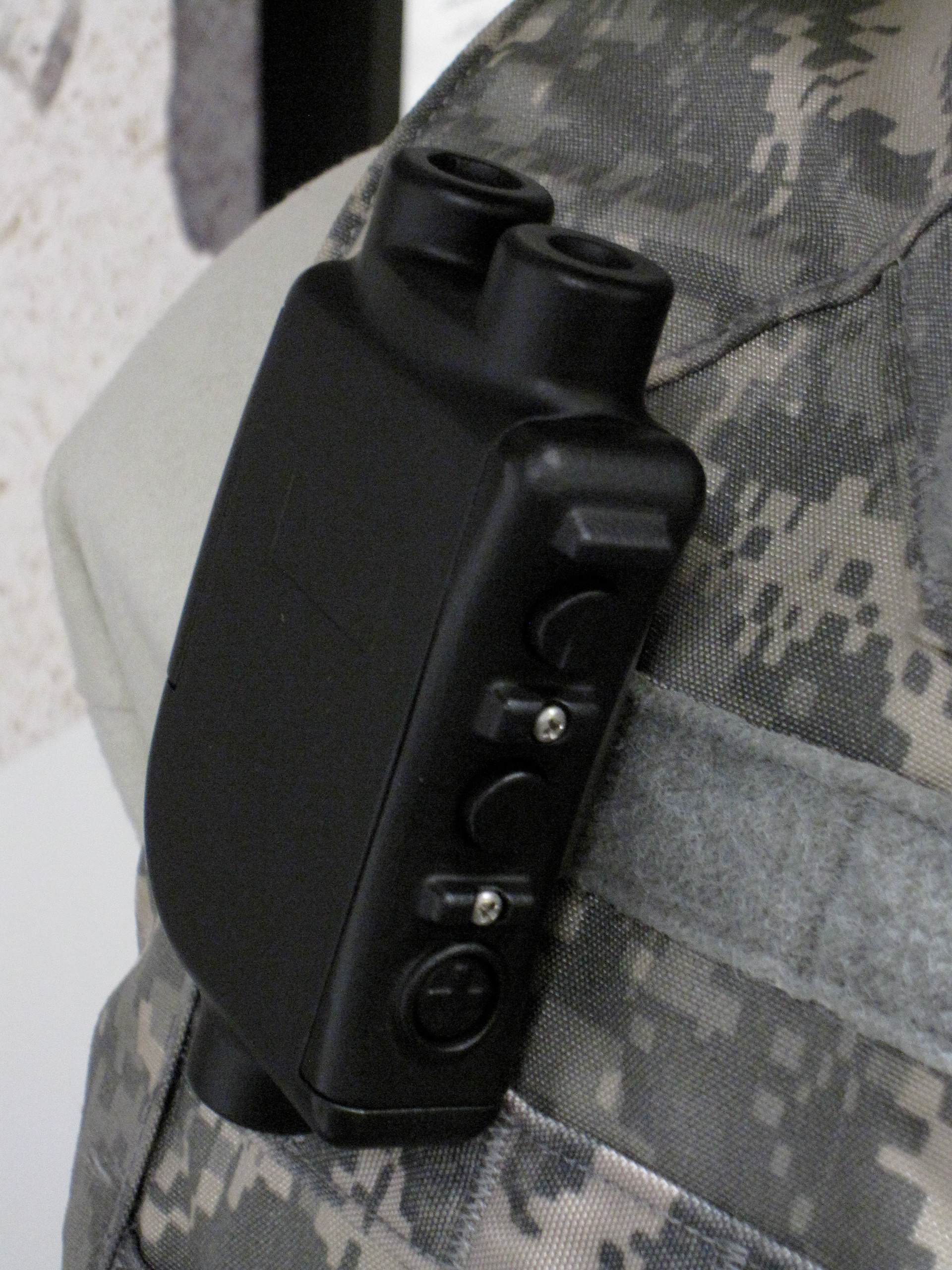

Mounted on user

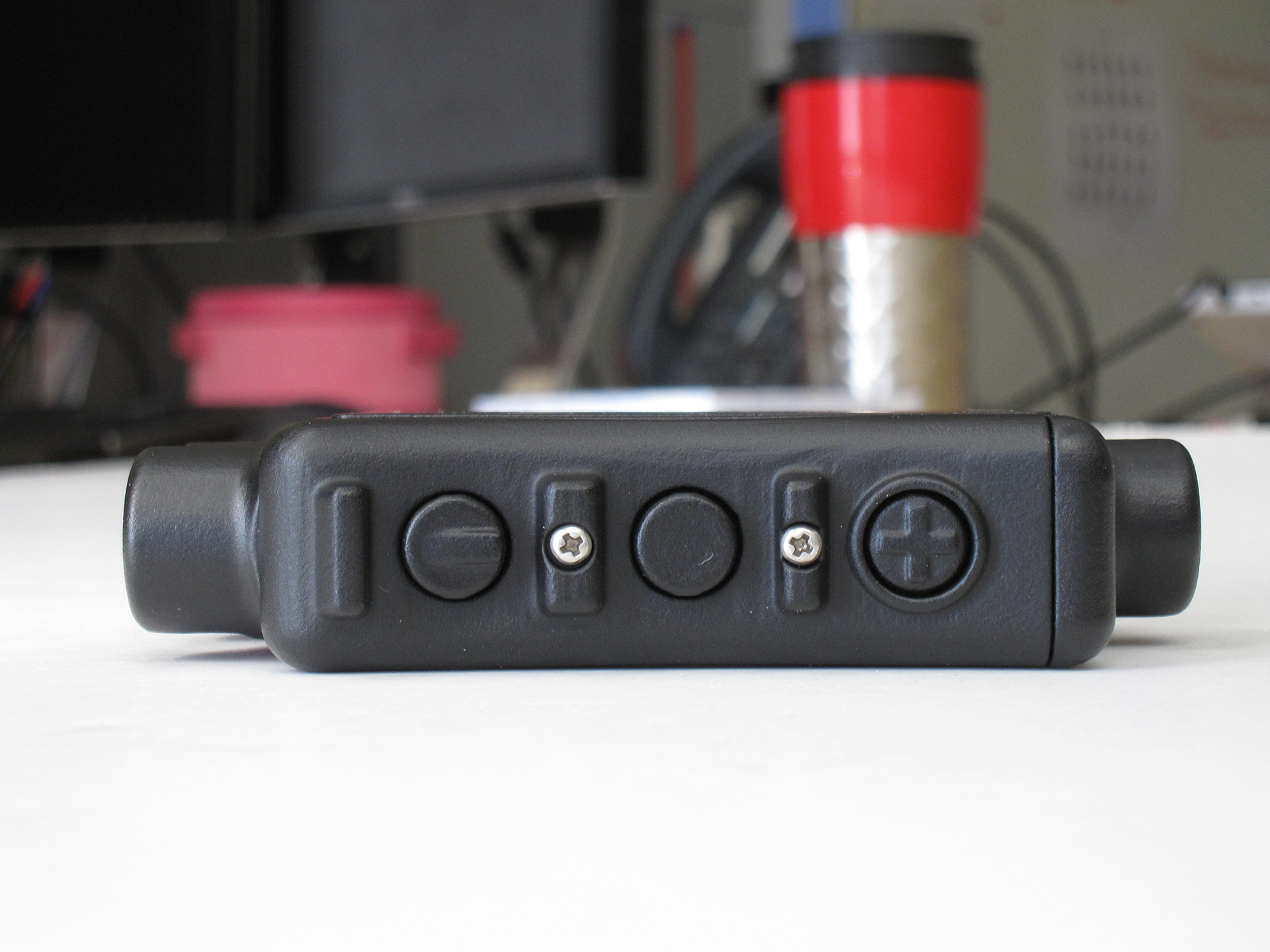

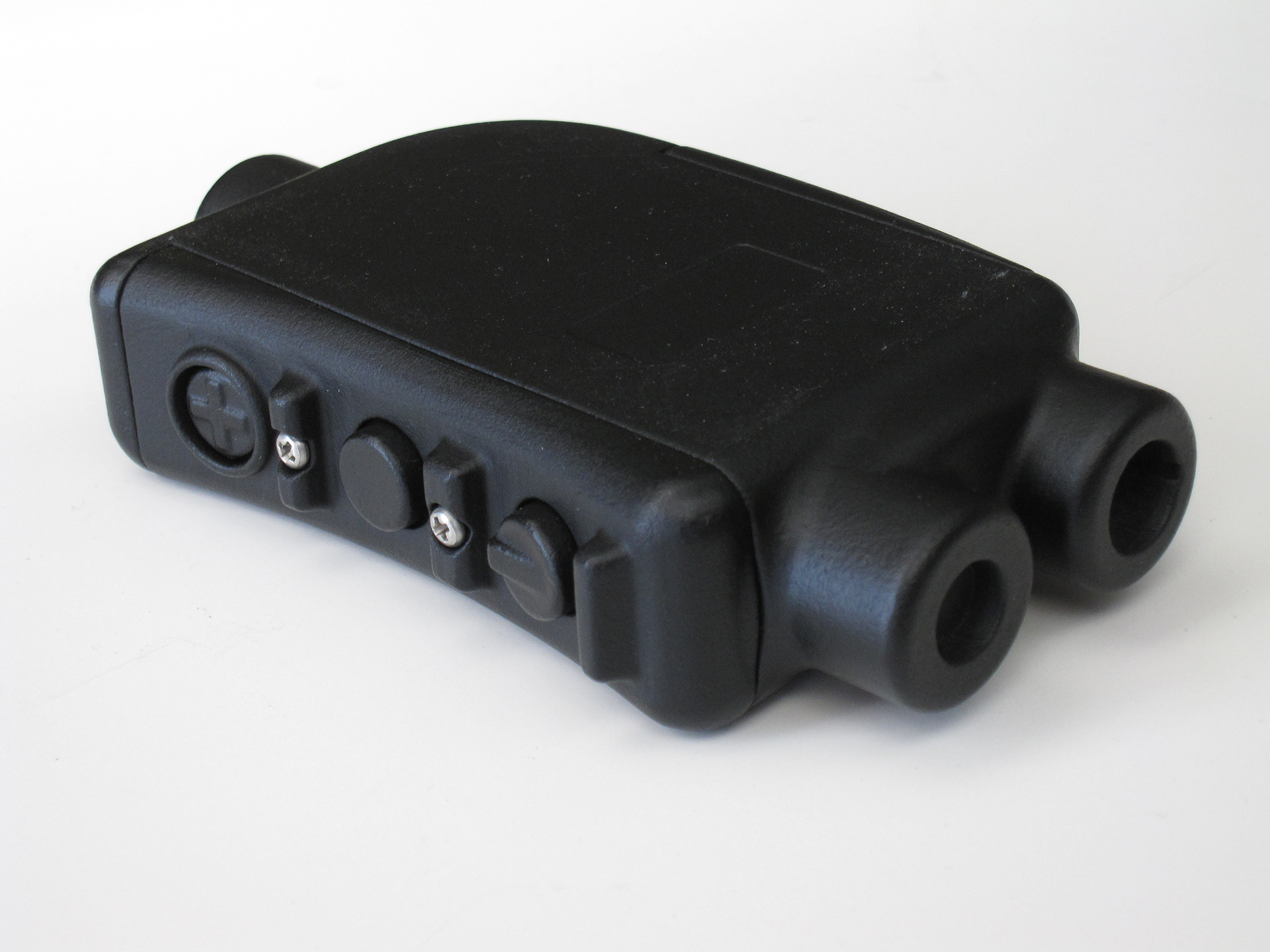

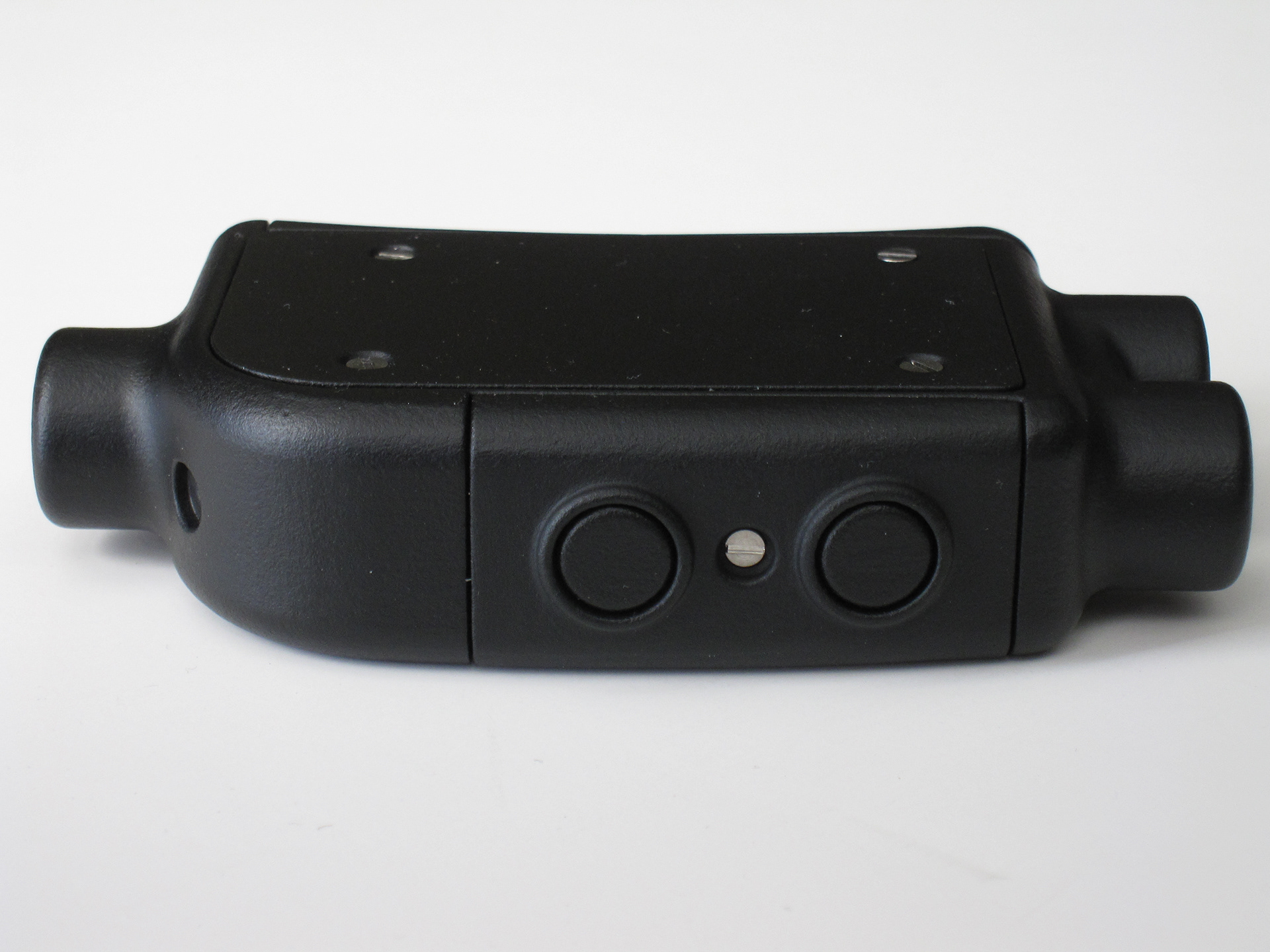

Production Hardware
